Small Axial Piston Pump

0.4 – 6.3cm3 high pressure pump line-up
Small Axial Piston Pump
  • Adopting Takako's original design for all series enabled high efficiency from low to high rotation speed.
  • 0.4cc Small Axial Piston Pump

  • Bi-directional rotation with good responsiveness, ideal for being drived by servo motors.
  • Lightweight thanks to aluminum case.
  • The world's smallest class Small Axial Piston Pump
Basic Specifications
Displacement
(cm³)
Max. Working Pressure
(MPa)
Max. Input Rotation
(min-1)
Weight
(kg)
Size
Corner x Length(mm)
0.4 14 2000 0.27 30×77
0.8 21 3000 0.43 40×97
1.6 21 3000 0.96 60×112
3.15 21 3000 1.94 80×137
6.3 21 3000 2.26 80×140
Downloadable Data
Small Axial Piston Pump Catalog PDF(1.07MB)
Sample Construction

Features a hybrid drive system that combines the benefits of hydraulics with the controllability of an AC servo motor and inverter motor to satisfy a broad range of specifications with a small volume pump. Users will find energy savings in fields such as industrial machinery and machine tools.

Small Piston Pump Applications
New products born of Takako's technological strengths
Sample Applications
  • Contamination measuring equipment
  • Pump for valve switching controls
  • Mold switching equipment for formation machines
  • Power regeneration motors
  • Transportation equipment in factories
  • FA production lines: Hydraulic clamps, press fitting machines
  • Dressing grinders (motors)
  • Crimping/fitting presses

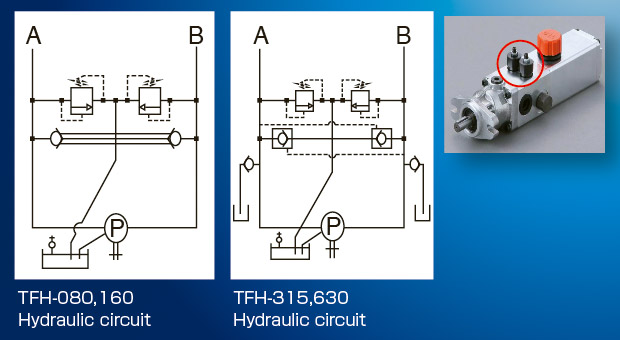

Example of Valve Pump Unit Use

Example of Valve Pump Unit Use

Press Structural Diagram

Press Structural Diagram

World Smallest Small Axial Piston Pump Unit

  • Possible to mount on small space where it was not possible in the past.
  • Energy saving as you can use hydraulic only at necessary place and time.
  • Input shaft could be driven in bi rotational wise with high responsiveness.
  • Wide application is possible as EHA: Electric Hydraulic Actuator combined with motor and actuator.

Safety

The device is protected from damage at overload as the safety valve is standardly equipped.

Response
· Repeatable location accuracy…±0.01mm

All kind of movement patterns are repeatable by driving the pump input shaft in bi-directions in combination with sensors.

Actual Application

Injection Molding Machine

  • Accurate control of thrust force by Hydraulics, which was not possible by electric ball screw.
  • The whole system becomes simpler, lower cost, and energy saving.

Sumitomo(SHI)DEMAG SE-EV series

Sumitomo(SHI)DEMAG SE-EV series

Robotics

  • High power, high precision robot is possible with the combination of advantage of hydraulic and electric.
  • Possible to set in a small space thank to the compact size.

Exsoskeleton by BIA
High power, compact pump is necessary to carry the total weight of the exsoskeleton and a human.

  • Ankle foot orthosis by CCEFP
    Total weight 3.3kg. The weight of the device on ankle part where the exercise load is big is reduced to 0.97kg by wearing the power supply on the waist. 65Nm torque is generated by Takako's standard 0.4cc pump.

Sample Animation

Demonstration machine using Small Axial Piston Pump.

Using Small axial piston pump as both pump and motor and exercising energy regeneration.

Demonstration machine using Small Axial Piston Pump.

The Actuator moves as you wish by controling rotation speed and rotation direction. Energy saving as the hydraulic circuit could be simpler.

Demonstration machine using Small Axial Piston Pump.

Hybrid of hydraulic and mechanical system. High performance of power and speed could be realized.

Demonstration machine using Small Axial Piston Pump.

Hydraulic power is available only when you need it, where you want to use it with less space.

Future Possibilities
  • Nursing care equipment
  • Medical equipment
  • Rescue robots
  • Service robots
  • Industrial vehicles
Our Small Axial Piston Pump will find use in next-generation applications
